Premium Technology
1470nm + 980nm Wavelengths
CW, Single Pulse, Repeat Pulse Modes

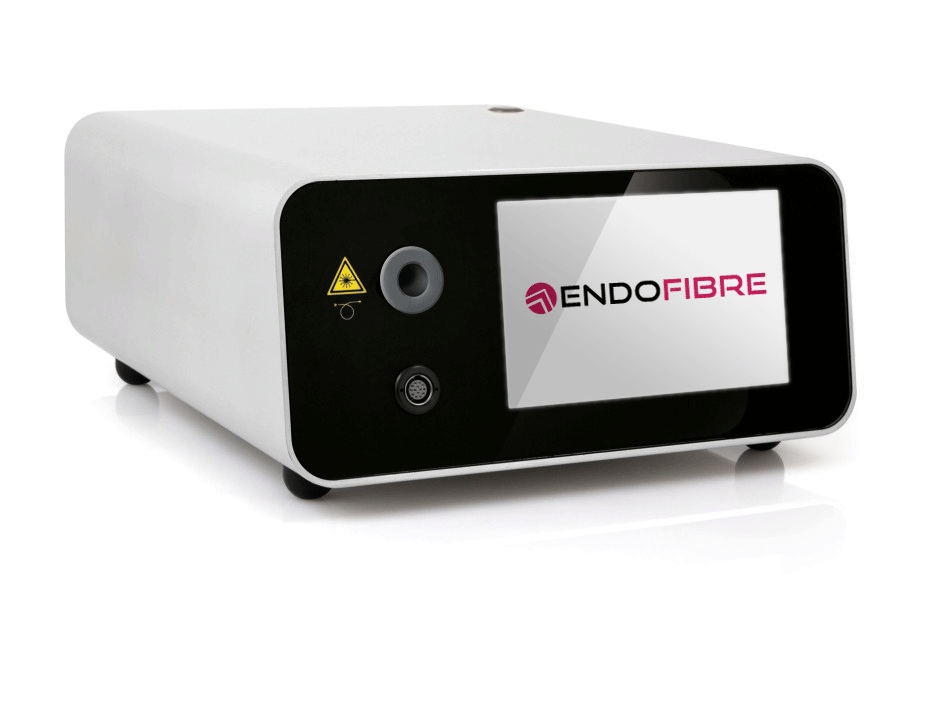

What is EndoFibre?
The ENDOFIBRE laser technology is specifically designed to tackle issues such as skin laxity and unwanted fat in localised areas that often result from the natural ageing process in the face and neck. It’s specialized laser generates heat beneath the skin, targeting the layer of cells where fibroblasts responsible for collagen production are located, ultimately tightening loose skin and reducing stubborn pockets of fat. This highly customizable treatment can be tailored to meet the specific needs of the patient by increasing the heat-generating capacity to permanently eliminate fat cells in small areas.
How does it work?
ENDOFIBRE ‘MICRO PULSE’ utilizes a 1470nm / 980nm diode laser. Laser energy is delivered through a thin optical fibre, which is inserted under the skin to stimulate collagen production and to tighten the skin. The laser targets water molecules in the skin, triggering a tightening and lifting effect.
See the results
ENDOFIBRE APPLICATIONS
Treatments
☑ Skin tightening
☑ Scars / keloids / granuloma
☑ Non-Surgical blepharoplasty
☑ Non ablative non-surgical face & neck lift
☑ Body skin tightening
Areas
☑ Face / neck
☑ Decollete
☑ Knees / thighs / arms
☑ Buttocks
☑ Abdomen

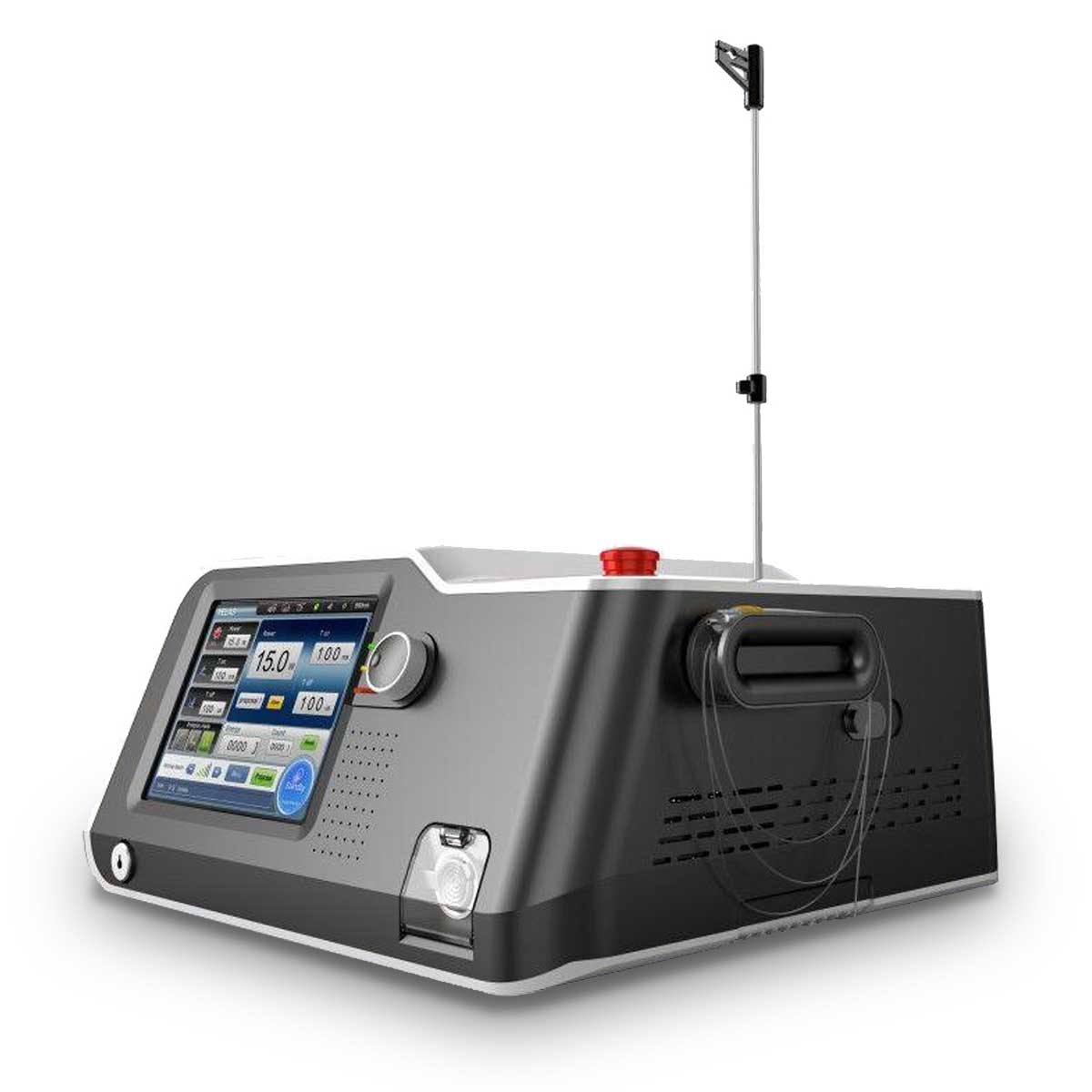

Endofibre Features
1470nm High Power Diode
Pre-Select programmes
Advanced Software
Air Cooling System
300um thin fibre
Adjustable pulse mode
Specifications
| LASER TYPE | DIODE LASER |
| WAVELENGTH | 1470NM + 980NM |
| OUTPUT POWER | 1-15W(±10%) 1-30W(±10%) |
| ST OF OUTPUT POWER | ≤10% |
| RP OF OUTPUT POWER | ≤10% |
| OPERATION MODES | CW / SINGLE PULSE / REPEAT PULSE / BURST PULSE |
| BEAM DIVERGENCE | WORKING BEAM: 25° AIMING BEAM: 25° |
| PULSE WIDTH | 10ΜS-10S |
| PULSE REPETITION RATE | 0.05HZ-50 KHZ |
| FIBER CORE DIAMETER | ≥400ΜM NA ≥0.22 (WITH SMA905 CONNECTOR) |
| TRANSMISSION SYSTEM CONTACT FIBERS | 200UM, 400ΜM, 600ΜM 1000ΜM WITH SMA905 CONNECTOR NON-CONTACT: FIBERS AND TIPS |
| AIMING BEAM DIODE LASER | 650NM, POWER 2MW, ADJUSTABLE BRIGHTNESS |
| OPERATION INTERFACE | LCD TOUCH SCREEN |
| POWER SUPPLY | ~100-240V, 50-60HZ, 350VA |
| LASER CLASS | 4 |
| COOLING AIR FUSE | F5AH250VP |
| DIMENSIONS (MM) | 400(W) 385(L) 200(H) |
| WEIGHT | 12.9KG |
| WATERPROOF LEVEL | IPX1 |
| FOOTSWITCH WATERPROOF LEVEL | IPX8 |
| SAFETY COMPLIANCE | CE 0197 |
| OPERATING TEMPERATURE | 5~40° |
| RELATIVE HUMIDITY | LESS THAN 80% |
| ATMOSPHERIC PRESSURE | 860HPA ~ 1060HPA |
| STORAGE TEMPERATURE | -20~50° |
